GEMS & JEWELLERY MACHINES & SYSTEMS
REFINING
MACHINE : DUST BURN OUT FURNACE (ELECTRICAL)
Product Description
Features & Specifications :
➢
Application :
for all kinds of sweeping dust and wastes
➢
Heat Source :
Kanthal Heaters
➢
Capacity :
5Kgs, 10Kgs & 15Kgs
➢
Construction & Size :
MS with hi efficiency Refractory Lining @ 900*1000*1500 mm (Max)
➢
Insulation :
150 mm thk. Refractory Lining.
➢
Power :
230V / 440V
➢
Sensor :
FeK or CrAl with Ceramic Sheath
➢
Controller :
Single Set Point @ +/-5% accuracy.
Accessories:
➢ Automatic control Panel with necessary switchgear and safety controls
➢ SS-310 Trays with loading prong
Show more

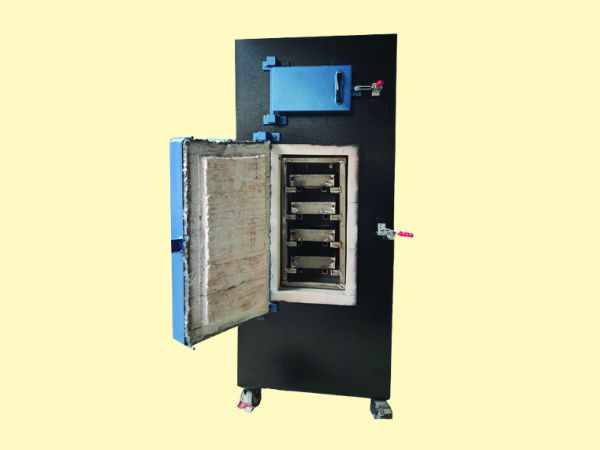

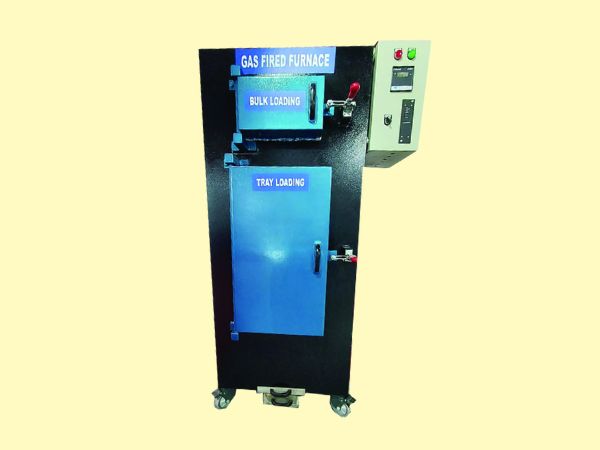

MACHINE : GAS FIRED DUST BURNING FURNACE
Product Description
Features & Specifications :
➢
Application :
for the Burning of Polishing, Filing & Sweeping Dust incl Sludge from settling Tanks
➢
Heat Source :
LPG/LNG burner (Imported) conforming to intl safety stds
➢
Capacity :
20-25 Kgs at a time @ 650-7500 C
➢
Construction :
ISA 50 with 14 SWG,MS Cladding
➢
2 Doors :
for Loading & Checking
➢
Gate :
1/2" NB SS-310 Rods
➢
Working Space :
375*450*500mm (Ht.)
➢
Insulation :
150 mm thk. Refractory Lining.
➢
Sensor :
FeK or CrAl with Ceramic Sheath
➢
Controller :
Single Set Point @ +/-5% accuracy.
Accessories:
➢ Automatic control Panel with necessary switchgear and safety controls
➢ 3-4 Nos. SS-310 Trays with loading prong
Show more

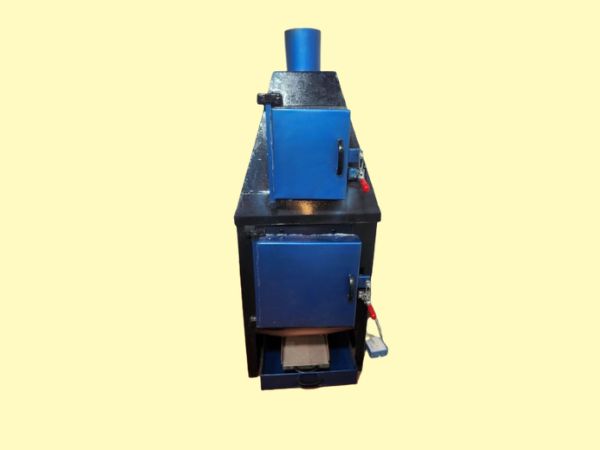

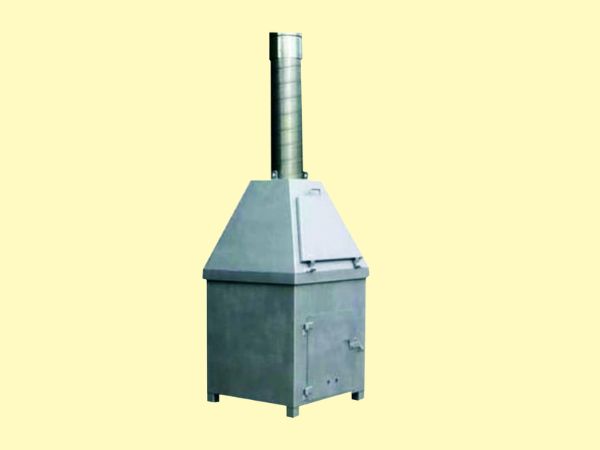

MACHINE : GARBAGE INCINERATOR
Product Description
Features & Specifications :
➢
Application :
for the Incineration of Heavy Material like Carpets /Rugs/Paper, Upholstery etc.
➢
Heat Source :
Direct burning
➢
Capacity :
20-25 Kgs at a time @ 650-7500 C
➢
Construction & Size :
ISA 50 with 14 SWG,MS Cladding @ 1200*1000*1500mm
➢
3 Doors :
for Loading, Checking & Discharge
➢
Gate :
1/2" NB SS-310 Rods
➢
Working Space :
350*450*600mm (Ht.)
➢
Insulation :
150 mm thk. Refractory Lining.
Accessories:
➢ Automatic control Panel with necessary switchgear and safety controls
➢ SS-310 Dust Collection Trolley
Show more

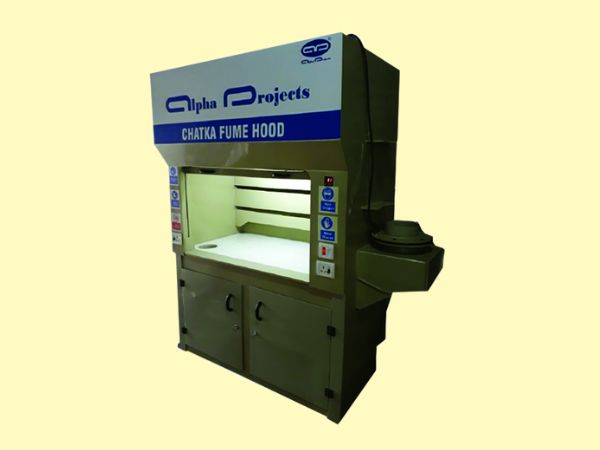

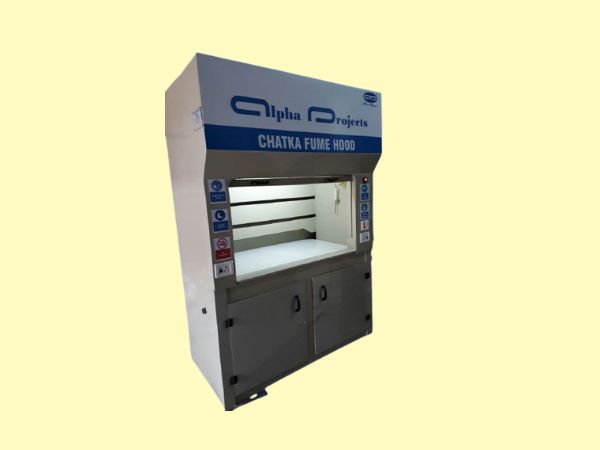

MACHINE : AQUA REGIA & CHATKA FUME CUPBOARD
Product Description
Features & Specifications :
➢
Application :
for all kinds of boiling operations and acid processing
➢
Heat Source :
Electrical / Gas
➢
Std Sizes :
1200W, 1500W, 1800W std widths (2000 width available on request) * 1000 * 2400 H
➢
Construction :
10mm PP-H
➢
Door :
5mm thick Polycarbonate/ Toughened Glass with top sliding dounter weight arrangement.
➢
Power :
240V / 440V
Accessories:
➢ Uptake with butterfly damper
➢ Lockable Storage Shutters
➢ CFL Light with Vapour Proof casing
➢ 5/16A *2 Nos. Switch Socket with MCB
➢ 15NB*3 Nos. Gas Regulation Valves
➢ 200NB Integral PP Sink (Optional)
Show more

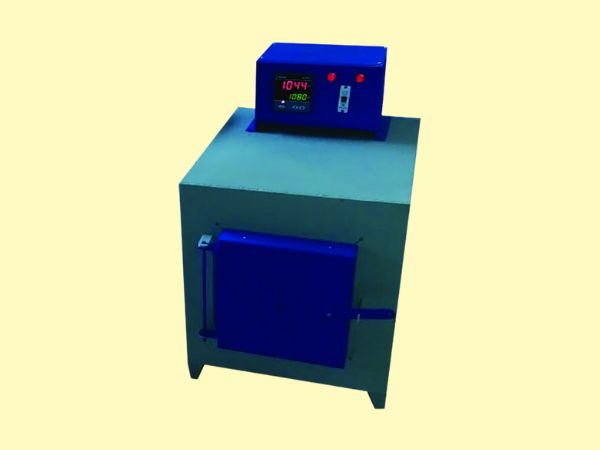

MACHINE : ASSAYING / CUPPELATION FURNACE
Product Description
Features & Specifications :
➢
Application :
for all kinds of fire assay tests
➢
Heat Source :
Kanthal Heaters/ Silicon Carbide Rods
➢
Capacity :
6, 9, 12Cupolas
➢
Construction & Size:
MS with hi efficiency Refractory Lining @ 600*900*1500 mm (max) Muffle Type Construction also available
➢
Insulation :
150mm thk. Refractory Lining
➢
Power :
230V / 440V
➢
Sensor :
FeK or CrAl with Ceramic Sheath
➢
Controller :
Single Set point @ +/-5% accuracy.
Accessories:
➢ Automatic control Panel with necessary switchgear and safety controls
➢ SS-310 Plenum to prevent heaters from splash
Show more
MACHINE : FILTERATION UNIT
Product Description
Features & Specifications :
➢
Application :
for fileration after dissolution (Refinery)
➢
Vacuum Source :
Air operated Diaphragm Pump
➢
Size :
300NB, 350NB, 450NB & 600NB
➢
Construction :
PP & FRP
➢
Power :
0W Only Compressed Air @ 20lph&4bar
Accessories:
➢ Castor Wheels
➢ Easy To operate Wing Nuts
➢ Frontal Piping
➢ control Valves
Show more

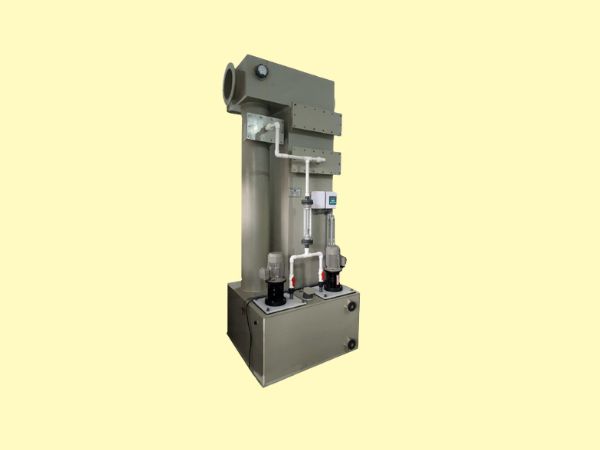

MACHINE : GAS SCRUBBER
Product Description
Features & Specifications :
➢
Application :
for automatic scrubbing of fumes emitted during Refining, boiling etc
➢
Type :
Packed Bed cum Orifice cum Spray Tower
➢
Capacity :
500 - 10000 cmf
➢
Construction :
PP & FRP
➢
Power :
2.25Kw (max)
Accessories:
➢ Digital PH Meter
➢ Recirculation Pump, Vertical Submersible Type
➢ Demister Pad
➢ Frontal Piping
➢ Control & Drain Valves
➢ Level Indicator
➢ Sight Glass
Show more
MACHINE : DUST SCRUBBER
Product Description
Features & Specifications :
➢
Application :
for scrubbing fumes emitted during dust burning, casting etc
➢
Type :
Cyclonic cum Orifice cum Spray Tower
➢
Capacity :
500 - 10000 cmf
➢
Construction :
MS & SS or MS/PTFE Lined
Accessories:
➢ Recirculation Pump, Vertical Submersible Type
➢ Demister Pad
➢ Frontal Piping
➢ Control & Drain Valves
➢ Level Indicator
➢ Sight Glass
Show more

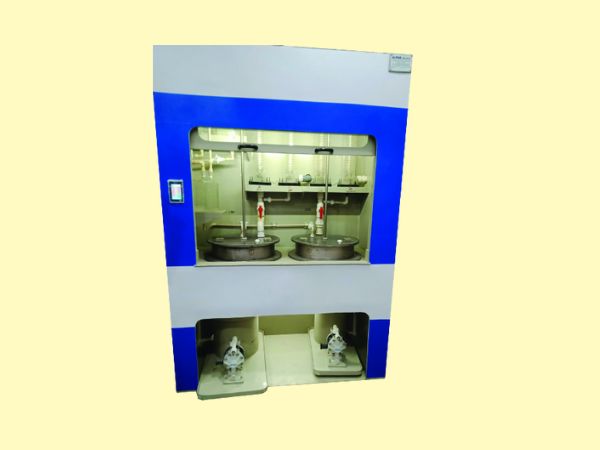

MACHINE : CONDENSOR FOR GOLD RECOVERY
Product Description
Features & Specifications :
➢
Application :
for condensing fumes during dissolution enhancing gold recovery
➢
Type :
Shell & Tube Type
➢
Size :
200NB, 250NB & 300NB
➢
Construction :
Glass or PP with PE Colis
➢
Connection :
Flange Type @ Table 'D'
Accessories:
➢ Mounting Pads
➢ Condensate Drain Nozzle
➢ Inlet / Outlet Nozzles
➢ Water Chiller (Optional)
➢ Recirculation Pump (Optional)
Show more

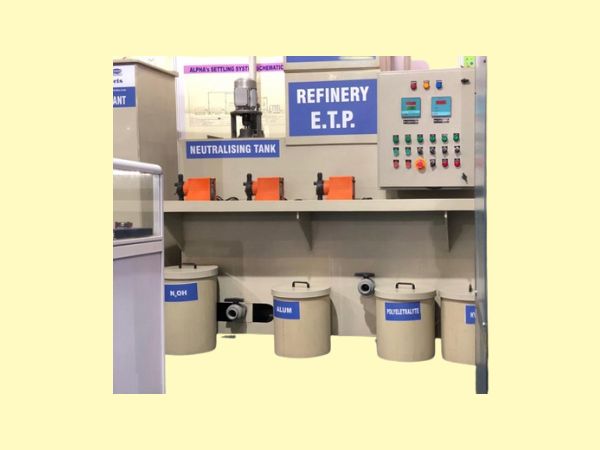

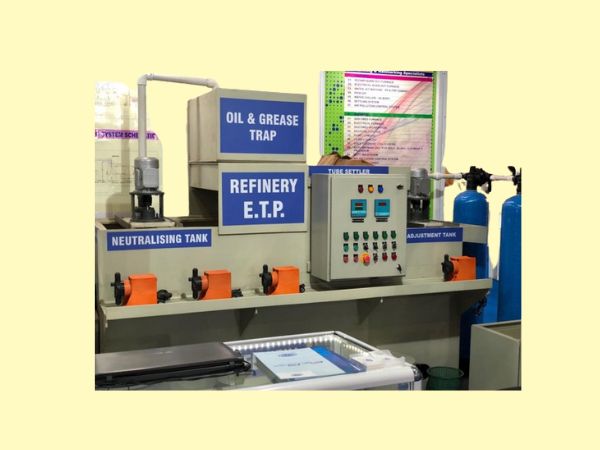

MACHINE : REFINING ETP
Product Description
Features & Specifications :
➢
Application :
for treating Refinery effluent in accordance with PCB Norms
➢
Type :
Primary Treatment
➢
Capacity :
100-1000 lpd
➢
Construction :
PP & FRP
➢
Power :
3.0Kw (Max)
Accessories:
➢ Automatic Control Panel with necessary switchgear and safety controls
➢ Vertical Transfer Pumps & Dosing Pumps
➢ Frontal Piping
➢ Control & Drain Valves
➢ Level Indicator
Show more

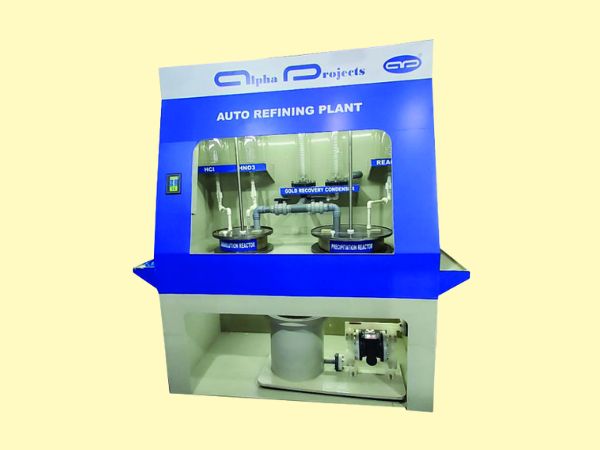

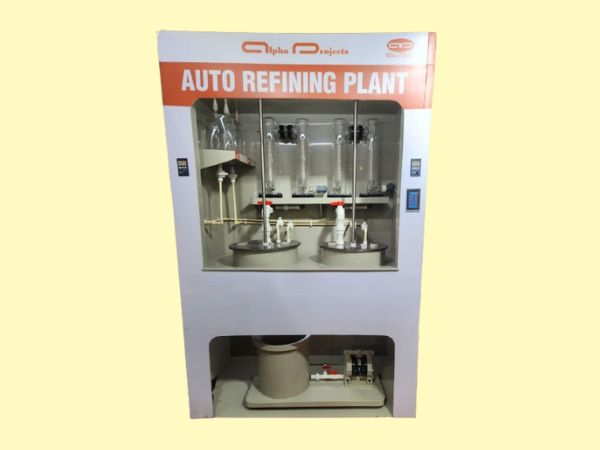

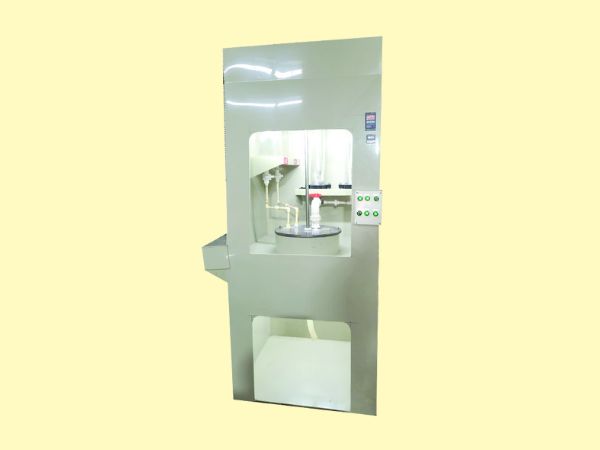

MACHINE : AUTO REFINING PLANT
Product Description
Features & Specifications :
➢
Application :
for Refining of all precious metal, viz, gold, silver, platinum, palladium etc.
➢
Type :
Automatic (for all hazardous operations)
➢
Capacity :
2 Kgs and 5 kgs (larger Capacities also available on request)
➢
Construction :
PP-H
➢
Power :
2.5Kw (Max)
Accessories:
➢ Hi Temp PPH/ Titanium Reactor with Automatic Stirrer.
➢ PP filter unit @ 350NB
➢ Precise Temperature Indicator
➢ 1kW Titanium Heater
➢ AOD pumps for acid transfer plus graduated acid storage beakers
➢ Integral Fume Digestor & Gas Scrubber (Optional)
Show more
CLEANING FINISHING

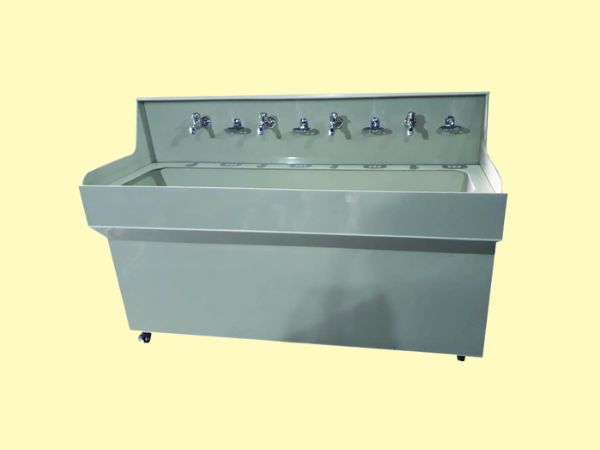

MACHINE : HANDWASH SETTLING TANK
Product Description
Features & Specifications :
➢
Application :
for gold recovery through handwash & process wash
➢
Type :
2Tap | 3Tap | 4Tap | 5Tap | 6Tap
➢
Capacity :
250 - 1000 litres
➢
Construction :
Basin : SS-304 & PP | Tank : PP
➢
Power :
0.75kW
Accessories:
➢ Hot & Cold Tap Facility (Optional)
➢ Castor Wheel Trolley
➢ Frontal Piping
➢ Control & Drain Valves
➢ Auto Pumping System
➢ 5 & 10 micron Filter Bank
Show more

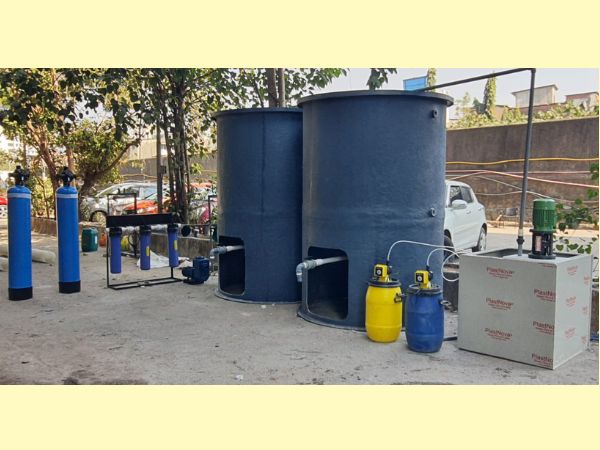

MACHINE : SECONDARY SETTLING SYSTEM
Product Description
Features & Specifications :
➢
Application :
for settling of fine gold particles and final filteration
➢
Type :
Conical Hopper Botton Tank
➢
Capacity :
500 - 10000 litres
➢
Construction :
PP/FRP
➢
Power :
2kW (Max)
Accessories:
➢ Poly & Alum Dosing Tanks
➢ Frontal Piping
➢ 5 & 10 micron Filter Bank
➢ Control & Drain Valves
➢ Auto Pumping System
Show more

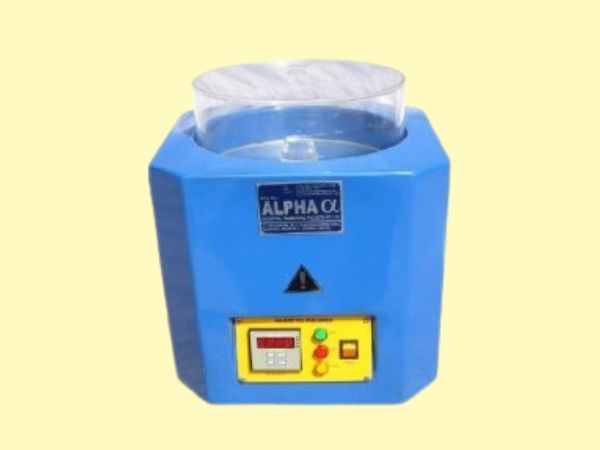

MACHINE : MAGNETIC POLISHER
Product Description
Features & Specifications :
➢
Application :
for cleaning & polishing of intricate pieces
➢
Type :
Forward Reverse
➢
Capacity :
200NB @ 1/2kg | 300NB @ 1kg
➢
Construction :
FRP
➢
Power :
0.375kW(Max)
Accessories:
➢ Digital Timer
➢ Speed Control
➢ Auto Forward Reverse Controller
➢ SS Media
➢ Tough & Sturdy Acrylic Bowl
Show more

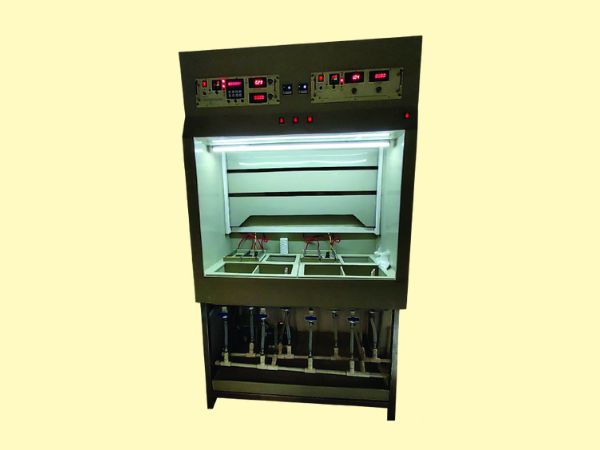

MACHINE : RHODIUM PLATING PLANT
Product Description
Features & Specifications :
➢
Application :
for Rhodium plating
➢
Type :
8 & 10 tanks systems
➢
Capacity :
20L plating tank
➢
Construction :
PP-H
➢
Power :
4.5kW(Max)
Accessories:
➢ CCCV Rectifier @ 12V / 25A
➢ Ampere Hour Meter
➢ Digital Temperature Controller
➢ SS-316L Anodes
➢ Digital Totallizer
➢ SS Immersion Heaters @ 1.0kW
Show more
MACHINE : BOMBING BOOTH
Product Description
Features & Specifications :
➢
Application :
for finishing of intricate pieces
➢
Type :
glove box type unit fo rcomplete saftery of operator
➢
Capacity :
1L Solution
➢
Construction :
PP-H
➢
Power :
1.0kW(Max)
Accessories:
➢ Vibrating Magnetic Hotplate
➢ Immersion Heaters
➢ PP Containers for Bombing Solutions
➢ SS-316L Anodes
➢ Frontal Piping & Valves
➢ Settling Tank
Show more

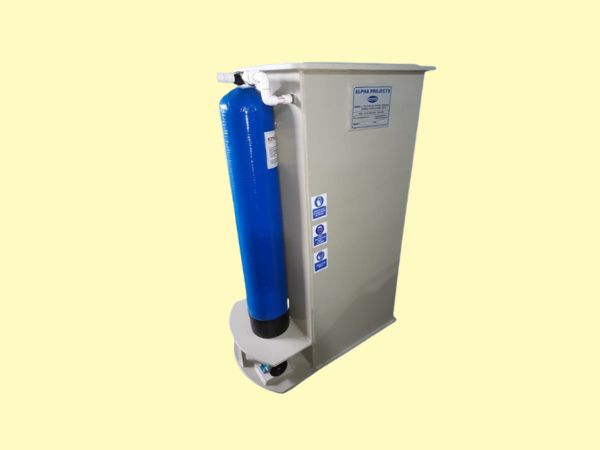

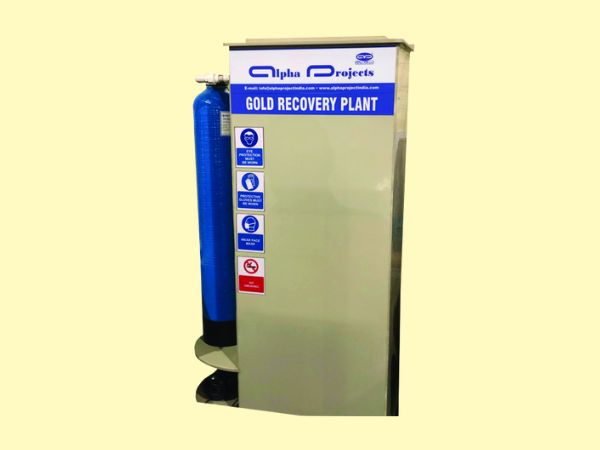

MACHINE : RESIN PLANT (for recovery of Au/Ag/Pt/Pd )
Product Description
Features & Specifications :
➢
Application :
for recovery of micro / nano particles of dissolved precious metal
➢
Type :
Adsorption type
➢
Capacity :
Tank =400 L, Resin = 25 L
➢
MOC :
Holding Tank -10mm thk . PP tank , Resin Column =6mm thk FRP
Accessories:
➢ Magnetic Pump @ 10-121pm & head
➢ Trolley Wheel Stand
➢ 15NB UPVC Frontal Piping
➢ Lid with handles and Vent.
Show more
